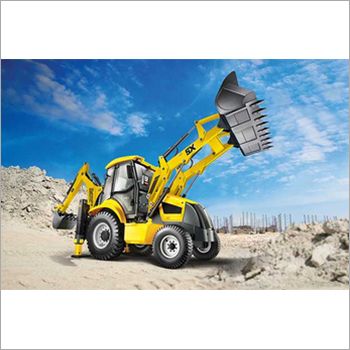

Mahindra EarthMaster SX Backhoe Loader

Mahindra EarthMaster SX Backhoe Loader
Mahindra EarthMaster SX Backhoe Loader
Send Inquiry
Product Code : 02
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece/Pieces
  • Price Range
  • 2400000.00 - 3000000.00 INR
Product Specifications
  • Product Type
  • Backhoe Loader
  • General Use
  • Digging
  • Material
  • Other
  • Type
  • Loader
  • Moving Type
  • Wheel Loader
  • Capacity
  • 1449 kg Kg/hr
  • Speed
  • 34.84 to 37.64 km/hr Km/hr
  • Torque
  • 345 Nm + - 5% @1400-1600 RPM N-cm
  • Weight (kg)
  • 7742 Kilograms (kg)
  • Bucket Capacity
  • 0.30 CuM Gallon
  • Computerized
  • No
  • Automatic
  • No
  • Hydraulic Steering
  • Yes
  • Control System
  • Manual
  • Fuel Tank Capacity
  • 120 Liter (L)
  • Color
  • Yellow
Product Description


FEATURES :

Excavator Controls

Mechanical Levers

Instrument Cluster

Analog DiGi sense - GPS, GPRS base vehicle health monitoring & tracking system(optional)

Warranty

1 year^ Standard Warranty, Unlimited Hours

Banana Boom Design

Yes

180 Deg Revolving Seats with Arm rest and Seat Belts

Yes

Mobile Charger

Yes

Storage Box

Yes


ENGINE

Mahindra DITEC Diesel Engine

Turbocharged Intercooled

No. of Cylinders

4

Displacement

3532 cc

Gross Horse Power

58.8 kw (79.89 HP) @ 2300 +/- 50 RPM

Peak Gross Torque

306 Nm @1300-1700 RPM


Hydraulics

System Type and Pressure

Open Centre: 250 Bars (3675 psi)

Pump Type

Fixed Displacement Gear Pump

Pump Delivery

115 litres @ 2350 RPM

Control Valves (Backhoe Loader)

Sectional Valves (Sandwich Type, Individually Replaceable)


Transmission

Type: Four Speed (4 Forward, 4 Reverse), Low Noise, Two Wheel Drive (2 WD), Synchro Shuttle Transmission with Electrically Operated Reversing Shuttle and Torque Convertor having Stall Ratio of 2.64:1


Axles

  • Rear Axle: Rigidly mounted drive axle, with outbound planetary final drives, driven by short drive shaft.
  • Front Axle: Centrally pivoted, non-driven unbalanced type axle, with total oscillation of 16°, with remote greasing facility for the main pin.


Brakes

  • Service Brakes: Hydraulically actuated, self adjusting, maintenance free, oil immersed multi-disc, on the rear axle, operated by independent foot pedals, joined together for normal operation.
  • Parking Brakes: Hand operated, inbuilt in the rear axle, low maintenance.


Electricals

  • Dust proof switches, ignition controls for engine start and stop, horn and reverse alarm, water and dust proof electrical connectors.
  • 100Ah, 12V, Low maintenance battery.
  • Alternator: 90 Ampere.


Cabin

  • Ergonomically designed cab with contemporary styling, excellent operator comfort, day and night time visibility, rear view mirror, multiple storage options, two door access, sliding rear window, stowable doors and an integrated tool box.
  • Cabin frame built with sturdy tubular sections and protected with CED technology for longer rust protection.
  • Fully adjustable premium operator seat with safety belt. Excellent leg space, conveniently positioned control levers and pedals.
  • Low line curved hood to enhance operator visibility.


Steering

  • Front wheel hydrostatic power steering, with priority function and pressure relief setting of 145 bar.


Operator Information and Entertainment System

  • Front Cluster : With Speedometer, Turn and Head Light Signals indicating RPM, Kilometers Run, Hours Run, Fuel Level, Temperature.


Excavator Performance

Maximum Dig Depth

4959 mm #

Reach at Ground Level to Slew Centre

5794mm

Reach at Full height to Slew Centre

2676mm

Maximum Working Height

6043mm#

Maximum Load Over Height

4302 mm#

Excavator Pivot Mechanism

Side Shift

Side Reach to the Centre of the Machine

6324 mm

Excavator Bucket Breakout Force

5199 kg

Excavator Arm Breakout Force

3182 kg

Lift Capacity to Bucket Pivot at Full Reach ( no bucket fitted) ( SAE J31)

1449 kg

Backhoe Bucket Capacity

0.27 CuM


Loader Performance

Dump Height

2708 mm

Load Over Height

3253 mm

Reach at Ground

1350 mm

Maximum Reach at Full Height

1115 mm

Loader Bucket Breakout Force

6243 kg

Loader Arm Breakout Force

5594 kg

Loader Lift Capacity at full height

3428 kg

Loader Bucket Capacity

1.1 CuM, Also available in 6-in-1 bucket


Speed (Gear - F/R)

1st F/R

5.66 km/hr

2nd F/R

9.11 km/hr

3rd F/R

20.00 km/hr

4th F/R

39.97 km/hr


Service Capacities


System Capacities

Service Replacement Capacities

Hydraulic Oil Circuit Capacity

100 Litres

50 Litres

Fuel Tank

120 Litres

120 Litres

Engine Coolant

17 Litres

17 Litres

Engine Oil

13.7 Litres

13 Litres

Transmission

19.20 Litres

10.20 Litres

Rear Axle

17.10 Litres

17.10 Litres

Front Axle




Tyres


Standard (Traction) (Industrial)

Optional (Heavy Duty)

Front

9 X 16-16PR

9 X 16-16PR

Rear

16.9 X 28-12PR

14 X 25-20PR / 12PR


Turning Radius

Outside Bucket (Inner Wheels Braked)

4494 mm

Outside Wheels (Inner Wheels Braked)

3091 mm

Outside Bucket (Inner Wheels Not Braked)

5697 mm

Outside Wheels (Inner Wheels Not Braked)

4464 mm


Shipping Weight of Vehicle

Shipping weight of the Machine with Industrial Tyres

7430 kgs

Shipping Weight of Machine with HD Tyre

7580 kgs

Trade Information
  • Supply Ability
  • As per Order Per Day
  • Delivery Time
  • 15 Days
